Horizon Aquatic Lifts [Part #2010102, 2010102-DLX, 2030086, 2030086-DLX]
Horizon Aquatic Lifts [Part #2010102, 2010102-DLX, 2030086, 2030086-DLX]

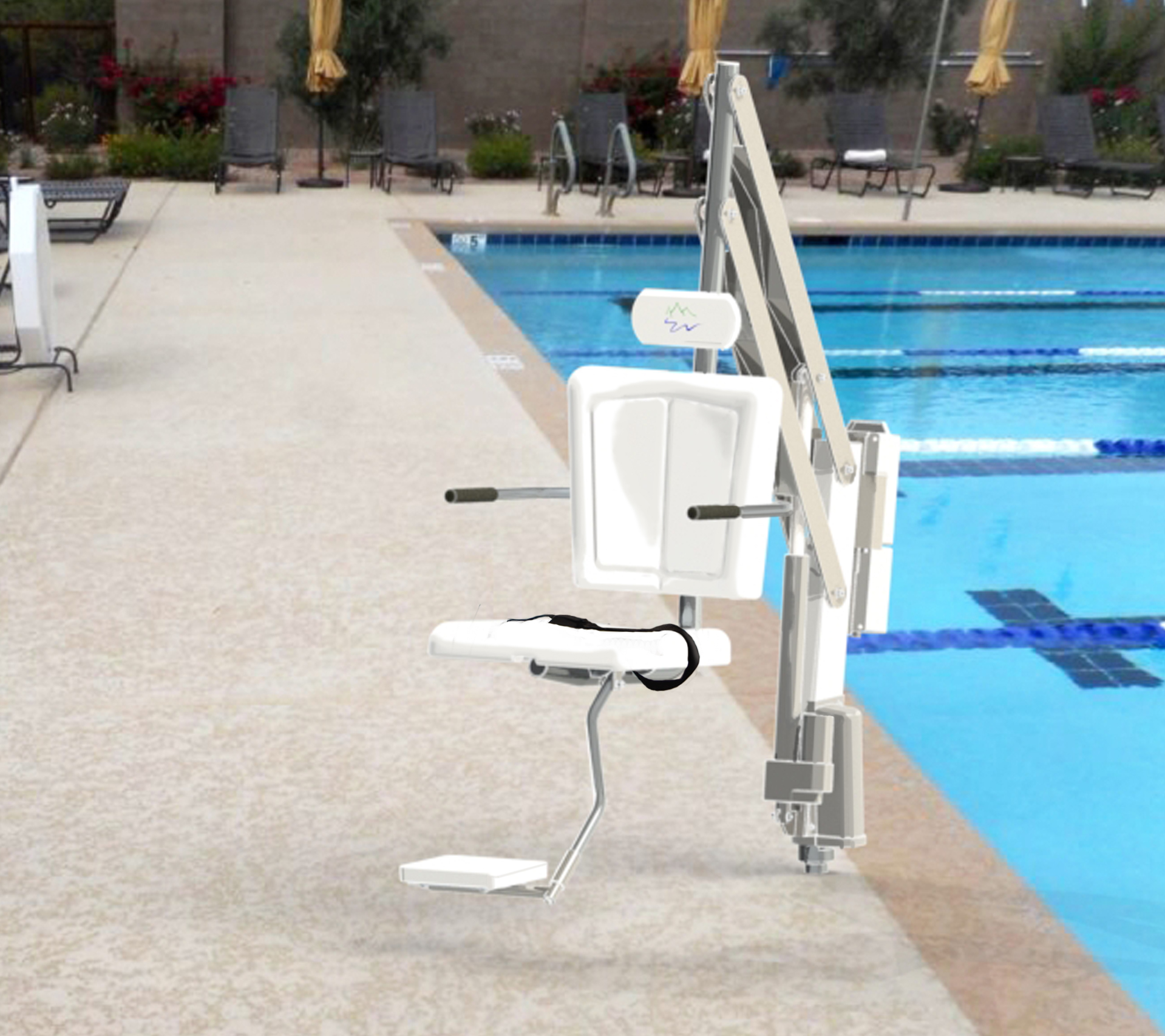

The Horizon aquatic pool lifts are wireless, and battery powered and are self-operable from the deck and water. With a robust operating system, these pool lifts can accommodate a wide variety of decks and gutter setbacks for both in- and above-ground pools for patrons up to 450 pounds.
Features
- Up to 450 pound lifting capacity
- Quiet and stable operation
- 90 lifts per battery charge
- Easy to install, even into existing concrete decks and anchors
- Rotationally and vertically powered with 360° continuous power rotation
- Accommodates setback of 6″ to 40″ and water draft up to 12″
- Stainless steel construction (electropolished 304L grade)
- Spacious seat offers excellent lumbar support and ease of transfer
- Powder color coating available to match any pool setting on some models
Includes
- 5-year structural warranty
- 2-year electronics warranty
- 24 volt battery and charger
- Spectra Shield® coating for corrosion protection
- 2 wireless remote controls
- Flip-up armrests with non-slip grip
- Padded headrest (Deluxe models)
- Adjustable footrest
- Seat belt
Accessories
- Anchor Kit-6"-Bronze, 1.9", Part#23638-00
- Anchor Extension, Part#163364-190
- Traveler Transportation Cart, Part#54523
- Lift Maintenance Kit, Part#152161-MT - Includes: Remote, 32oz Spectra Shield®, 22oz Spectra Clean™ System 1, Disposable Rags, Scratchless Scoth-Brite Pad, Battery, Dielectric Grease, Security Tork Bit
- Long Reach Lift Cover, Part#95837
- Actuator, Part#42263
- Control Box, Part#132055
- Handrest, Part#153399
- Spindle Assembly V2, Part#1910515
- Mast V2, Part#1910717
- Spine Board Attachment, Part#42323
Variants
- Part#2010102 - Horizon BP400
- Part#2010102-DLX - Horizon BP400 Deluxe
- Part#2030086 - Horizon BP350 Long Reach
- Part#2030086-DLX - Horizon BP350 Long Reach Deluxe
SPECTRA-SHIELD is a registered trademarks of Everlast Climbing Industries Inc., used with its permission
| Name | Download |
|---|---|
| Spectrum Standard Warranty | Download |
| SPEC - LIFT - HORIZON BP 450 DELUXE - 2010102-DLX (.pdf) | Download |
| SPEC - LIFT - HORIZON BP 450 DELUXE - 2010102-DLX (.dwg) | Download |
| SPEC - LIFT - HORIZON BP 450 - 2010102 (.dwg) | Download |
| SPEC - LIFT - HORIZON BP 450 - 2010102 (.pdf) | Download |
| POWDER COAT-SPEC | Download |
| SPEC - LIFT - HORIZON LONG REACH 350 - 2030086 (.dwg) | Download |
| SPEC - R - LIFT - HORIZON LONG REACH 350 DELUX - 2030086 DLX (.dwg) | Download |
| SPEC - LIFT - HORIZON LONG REACH 350 - 2030086 (.pdf) | Download |
| SPEC - R - LIFT - HORIZON LONG REACH 350 DELUX - 2030086 DLX (.pdf) | Download |
| Pool Lift Maintenance and Care | Download |
| Maintenance Checklist for ADA Pool Lifts | Download |
If you don’t find the support you’re looking for here, visit our support page or contact our support team for a specific request.
