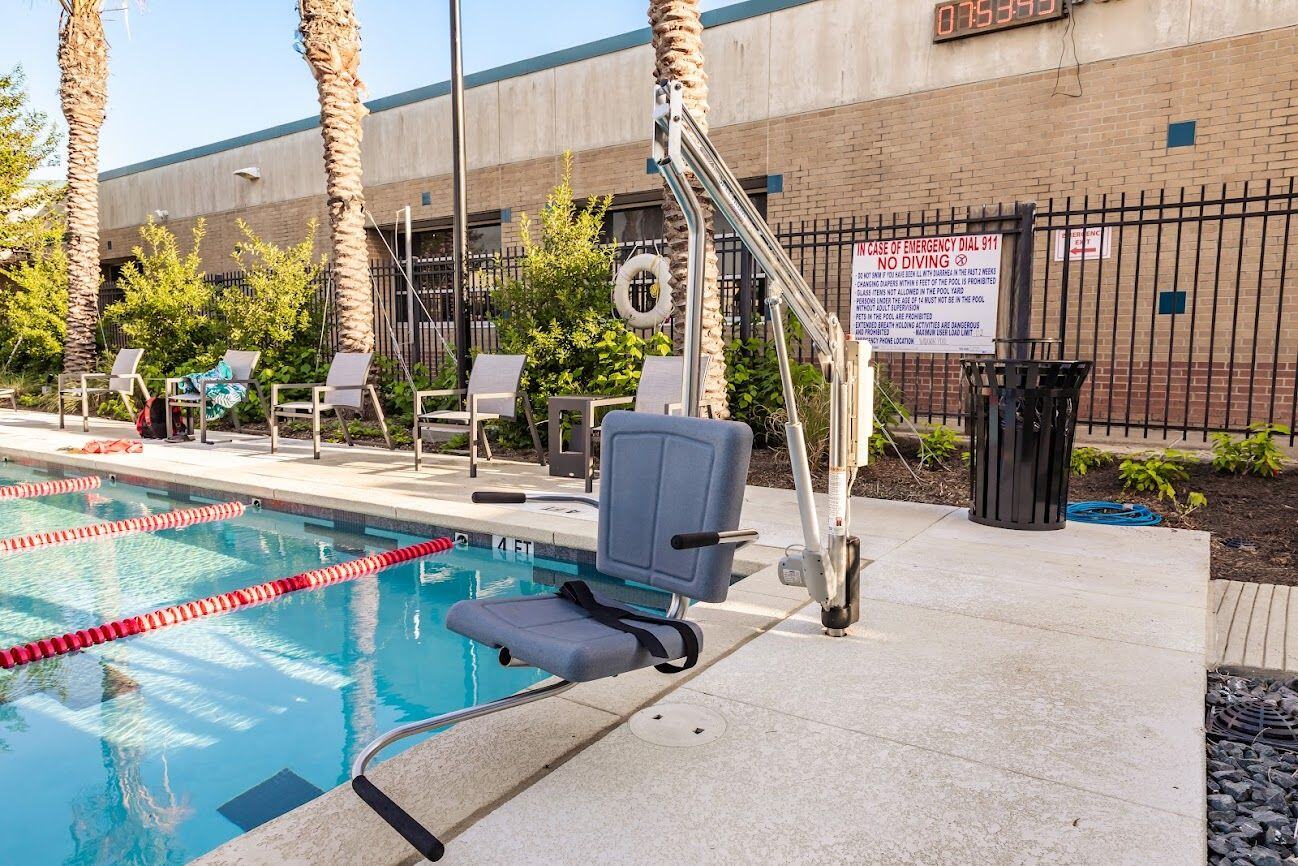

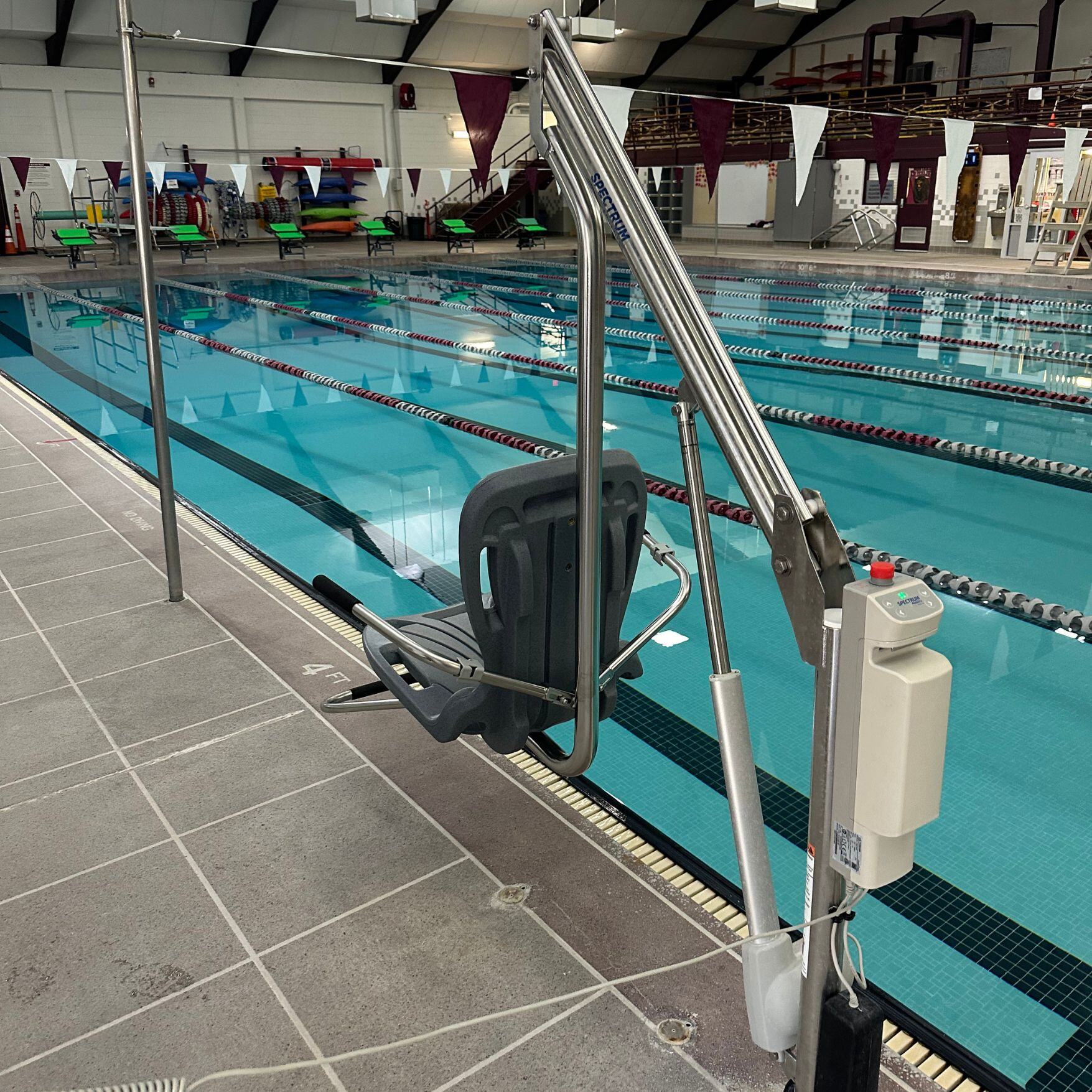

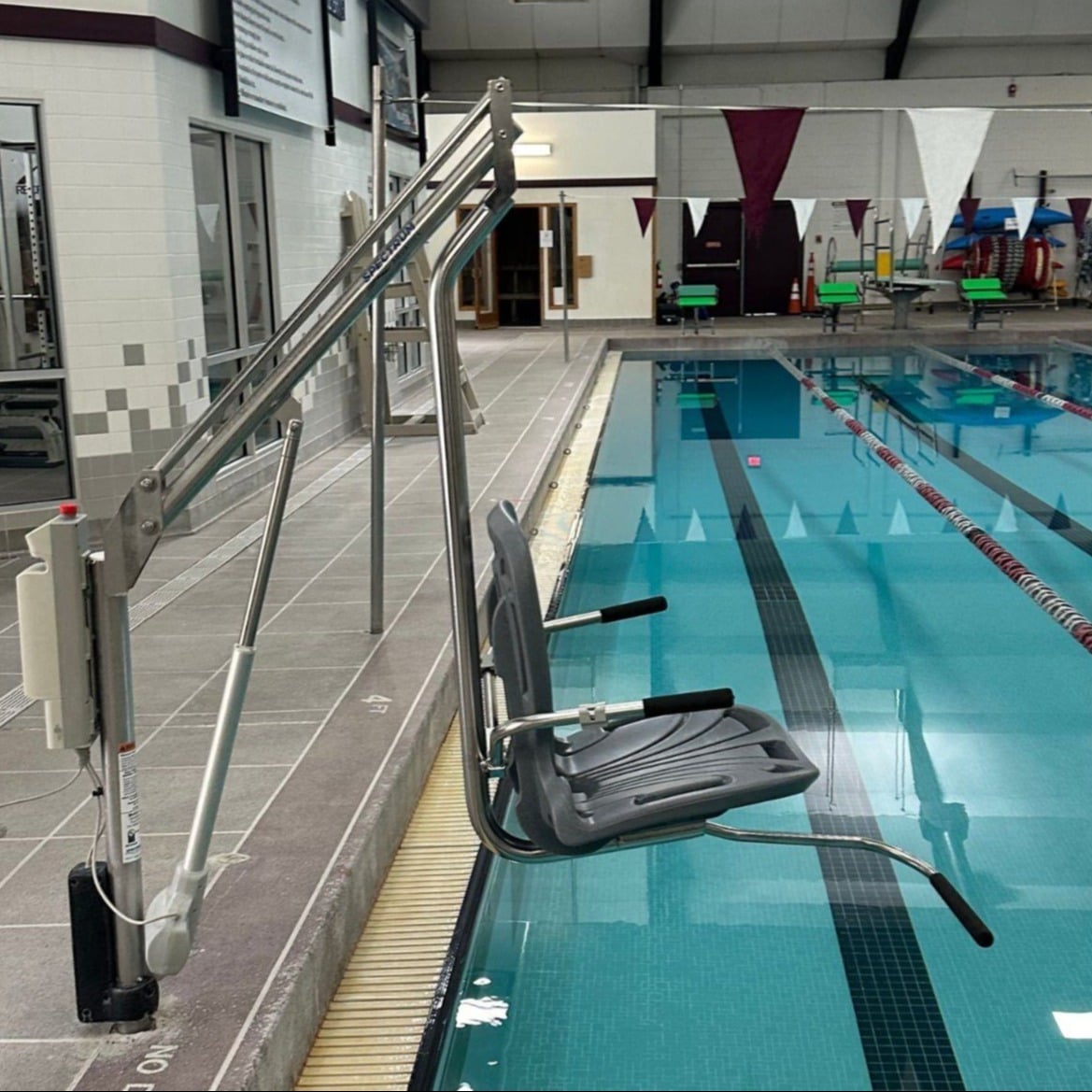

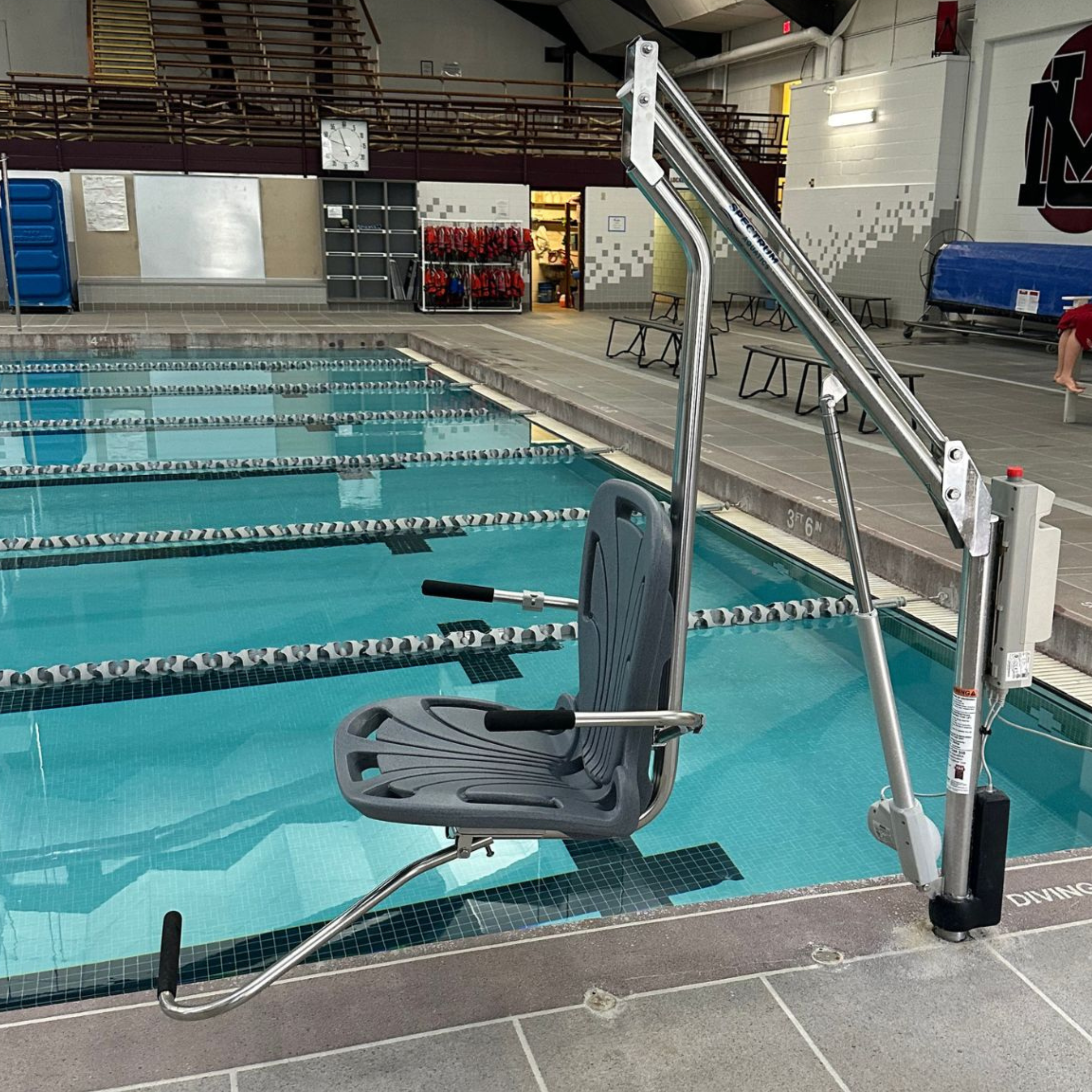

The Motion Trek BP 350 is an ADA compliant battery powered pool lift that is self-operable from the deck and water with a robust operating system. The Motion Trek 350 is designed for in-ground pools and spas.

Features

•Fully ADA Compliant
• 350 pound operating load capacity
• Self operable from the deck and water
• 90 lifts per battery charge
• All stainless steel construction (electropolished 304L grade)
• Coated with Spectra Shield® for maximum corrosion protection
• Stabilizer bar significantly improves lift stability during transfer
• Spacious seat with excellent lumbar support designed for ease of transfer
• Rotationally and vertically powered with 360 degree continuous powered rotation
• Proprietary Robust Operating System and Actuator outperforms the competition

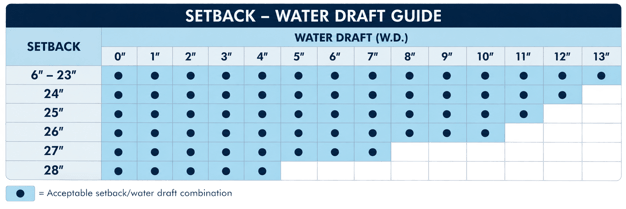

• Accommodates pool wall setback of 6” to 22” and water draft up to 12”
• Easy to install, even into existing concrete decks
• Improved rotation system for a smooth ride

Accessories

  • Motion Trek Composite Anchor, Part#28510
  • Anchor Extension, Part#163364-238
  • Wood Deck Anchor, Part#28515-00
  • Surface Mount Anchor, Part#75521
  • Accessory Package, Part#193403 - Includes: Battery, Dielectric Grease, Cover, Light Duty Lift Cart, Spine Board Attachment and Stability Strap
  • Lift Cover, Part#47949
  • Heavy Duty Cart, Part#42848
  • Light Duty Cart, Part#193404
  • Lift Maintenance Kit, Part#152161-MT - Includes: Remote, 32oz Spectra Shield®, 22oz Spectra Clean™ System 1, Disposable Rags, Scratchless Scoth-Brite Pad, Battery, Dielectric Grease, Security Tork Bit
  • Anchor Bearing Assembly, Part#173410
  • Rotational Motor Assemble, Part#173424
  • Hardware Kit, Part#173407
  • Actuator, Part#153600
  • Handset, Part#153603
  • AC/DC Adapter, Part#153604
  • Charger Cradle, Part#153605
  • Control Box with Battery, Part#173415

Variants

  • Part#153121 - Motion Trek BP350 with Anchor
  • Part#163370 - Motion Trek BP350 without Anchor

SPECTRA-SHIELD is a registered trademarks of Everlast Climbing Industries Inc., used with its permission

Spectrum_Motion Trek Family Cut Sheet



Certifications

ADA Compliant
Support for Motion Trek BP350 Deluxe
Manuals
Name Download
Motion Trek BP350 Deluxe Owners Manual (153121-DLX) Download
Optimizing Battery Powered Lift Performance and Longevity Download
Product Downloads
Name Download
Spectrum Standard Warranty Download
SPEC - R - LIFT - MOTION TREK 350 DLX - 153121-DLX (.dwg) Download
SPEC - R - LIFT - MOTION TREK 350 DLX - 153121-DLX (.dwg) Download
SPEC - R - LIFT - MOTION TREK 350 DLX - 153121-DLX (.pdf) Download
SPEC - ANCHOR - 6in - COPOLYMER LIFT 2.375 - 28510-00 (.dwg) Download
SPEC - ANCHOR - 6in - COPOLYMER LIFT 2.375 - 28510-00 (.pdf) Download
SPEC - ANCHOR - 6in 2.375in ID LIFT STAINLESS - 28510-S (.pdf) Download
SPEC - ANCHOR - 6in 2.375in ID LIFT STAINLESS - 28510-S (.dwg) Download
Pool Lift Maintenance and Care Download
Measuring Guides
Above Ground Pool Measuring Guide
Above Ground Pool Measuring Guide
Motion Trek - Paver Anchor Measuring Guide
Motion Trek - Paver Anchor Measuring Guide
Videos
Seat Belt Assembly for Pool Lifts
