Water Powered Hydraulic Gallatin ADA-Compliant Lift WP400 _[Part#27336]

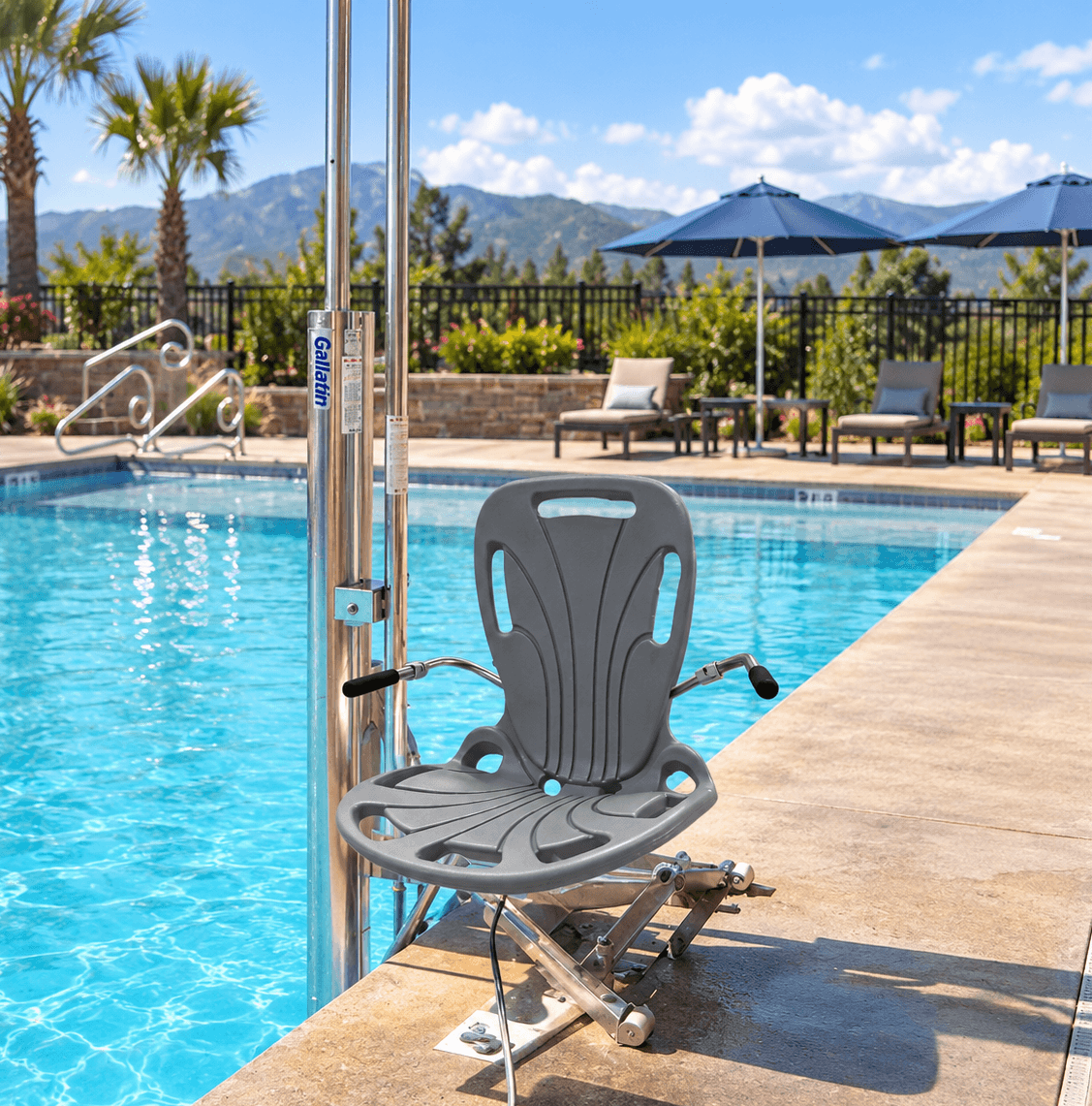

Gallatin Hydraulic Water-Powered ADA-Compliant Pool Lift

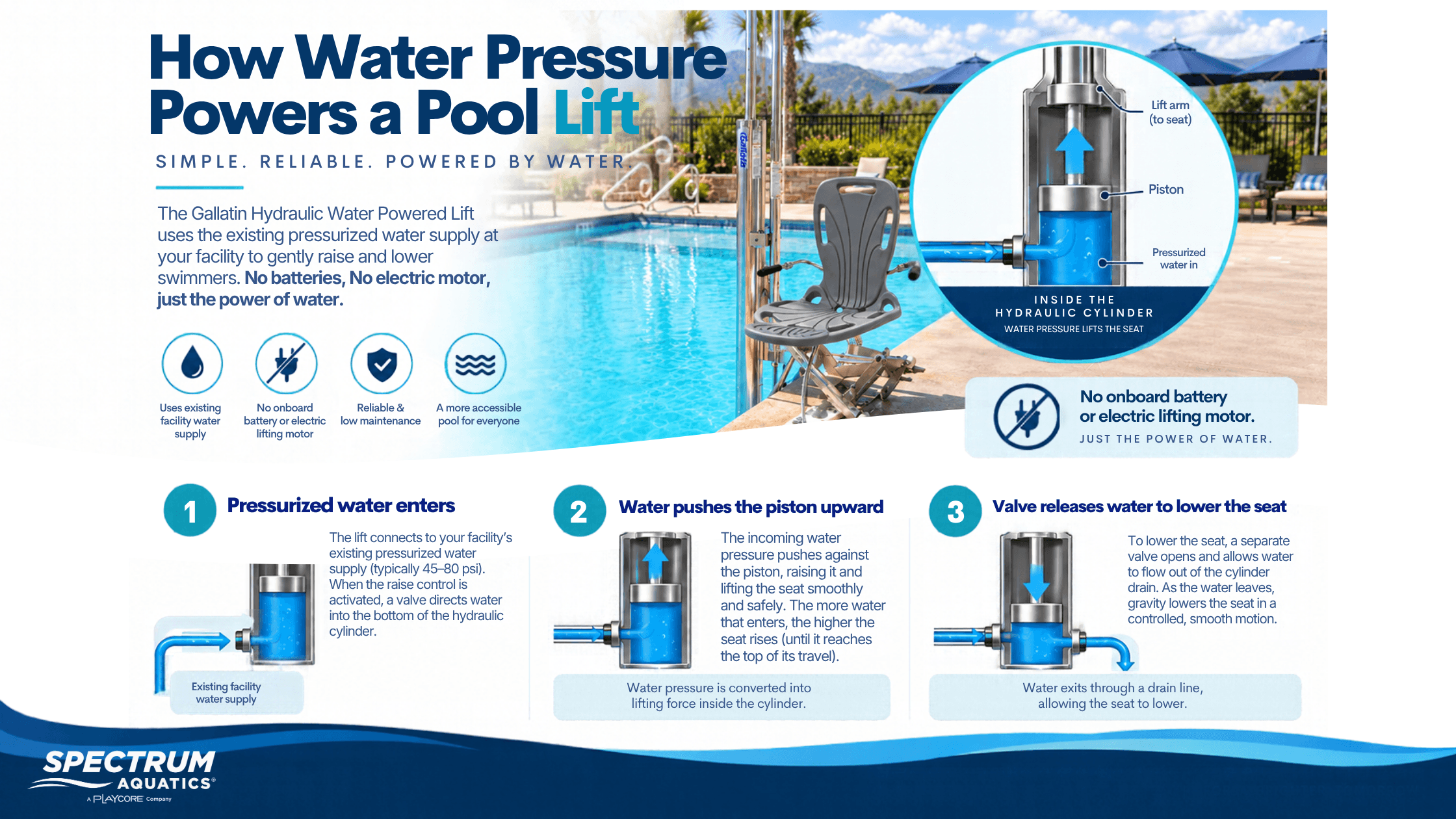

The Spectrum Aquatics Gallatin is a hydraulic, water-powered, ADA-compliant pool lift that provides safe, reliable, and independent access to swimming pools and spas without batteries, charging, or electricity. Powered entirely by your facility's water supply, the Gallatin delivers dependable performance with minimal maintenance, making it an excellent choice for commercial aquatic facilities seeking a simple, long-lasting accessibility solution.

The lift installs in locations with as little as 12 inches of total depth (from the deck to the pool floor or spa bench), making it a versatile option for a wide range of aquatic environments. The standard model accommodates anchor locations 18 to 30 inches from the pool wall, allowing it to integrate easily into new construction and many existing facilities.

The Gallatin is an excellent choice for large municipal aquatic centers, hotels, fitness centers, rehabilitation facilities, therapy pools, schools, and community recreation centers looking for an ADA-compliant lift that eliminates battery maintenance while providing reliable daily operation. Because it is powered by water pressure rather than batteries, the Gallatin is especially well suited for facilities that value low maintenance, long-term durability, and consistent performance.

Features

• ADA/ABA Compliant and Title 24: California Code of Regulations
• 400lb lifting capacity
• Extremely robust, known in industry for longevity and low maintenance
• Great for municipalities, community pools, YMCA’s
• Requires water pressure of 55 psi to function
• For pool and spa applications
• Passivated stainless steel – no dissimilar metals
• Dual point anchor
• Large diameter cylinder and piston designed specifically to provide greater and quicker lifting capacity
• Adjustable padded headrest for full support
• Large spacious seat designed for ease of transfer
• Seat has excellent lumbar support and material will not disintegrate or crack over time
• Durable low density polyethylene footrest with non-slip surface for safety and comfort
• Footrest will not disintegrate or flake over time
• Swing out footrest allows for ease of transfer
• Pinchless flip up outer arm
• Base stand accommodates a wide range of gutter configurations
• Heavy duty base stand design that provides high loading capacity with minimal deflection
• Base stand features built in wheels for portability
• Base stand adjustability up to 4″ of deck slope
• Non-slip grip armrest for safety and comfort

Accessories

• Retro-Fit Anchor, Part#27400
• Preset Anchor, Part#27450
• Water Box for Water Powdered Pool Lifts, Part#20400
• Lift Cover, Part#27364
• Pressure Booster System, Part#27028
• Cylinder Top Collar, Part#27315
• Flip-Up Footrest, Part#13900
• SL300 Valve Handle with Knob, Part#202090-00
• SL300 Valve Linkage Rod, Part#208048-00
• Gallatin Seat Replacement (Older Model) Part#44389
• Donut Shim Kit, Part#209225-00
• 2 1/4" Acme Bolt, Part#200135-00
• 4" Acme Bolt, Part#26235
