Gallatin Hydraulic Water Powered Assisted Access Lift WP400 [Part#27336]
Gallatin Hydraulic Water Powered Assisted Access Lift WP400 [Part#27336]

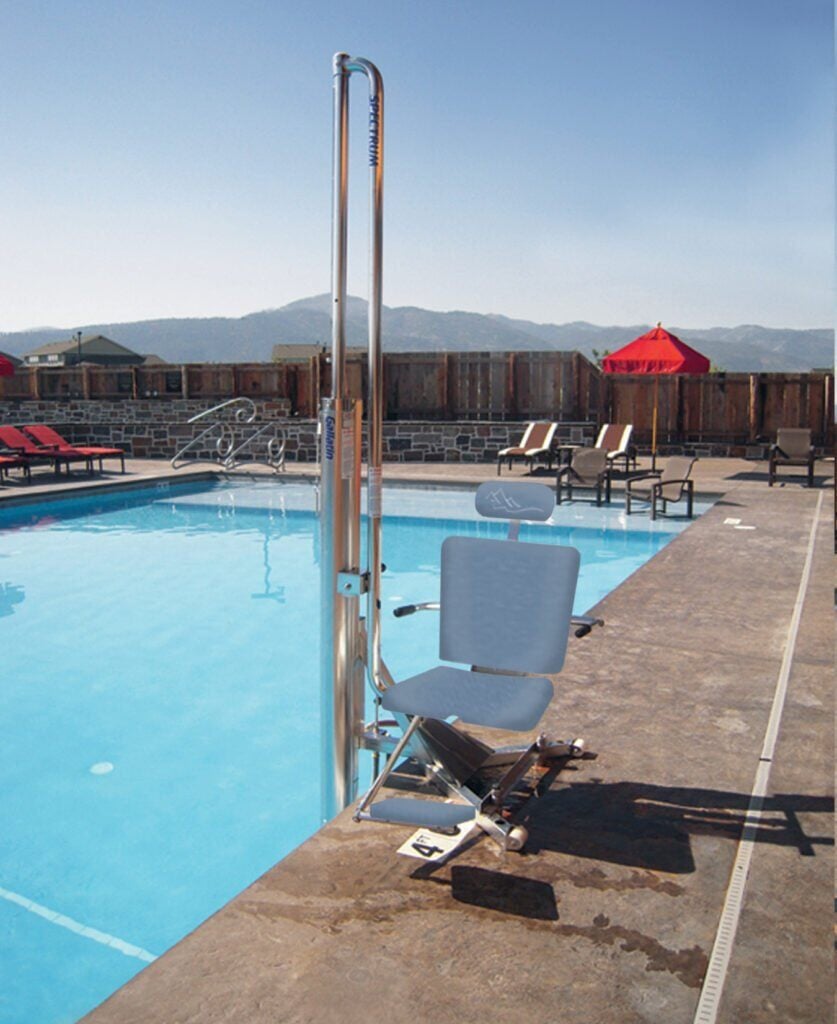

The Gallatin hydraulic water powered assisted access lift is designed to accommodate both in-ground pools and spas without customization. The Gallatin pool and spa lift requires no more than 12″ of total depth (deck to floor/bench) for proper installation. The standard unit will accommodate anchor locations of 18″ to 30″ from the pool wall.
Features
• ADA/ABA Compliant and Title 24: California Code of Regulations
• 400 lb. lifting capacity
• Passivated stainless steel – no dissimilar metals
• Dual point anchor
• Large diameter cylinder and piston designed specifically to provide greater and quicker lifting capacity
• Adjustable padded headrest for full support
• Large spacious seat designed for ease of transfer
• Seat has excellent lumbar support and material will not disintegrate or crack over time
• Durable low density polyethylene footrest with non-slip surface for safety and comfort
• Footrest will not disintegrate or flake over time
• Swing out footrest allows for ease of transfer
• Pinchless flip up outer arm
• Base stand accommodates a wide range of gutter configurations
• Heavy duty base stand design that provides high loading capacity with minimal deflection
• Base stand features built in wheels for portability
• Base stand adjustability up to 4″ of deck slope
• Non-slip grip armrest for safety and comfort
Accessories
- Retro-Fit Anchor, Part#27400
- Preset Anchor, Part#27450
- Water Box for Water Powdered Pool Lifts, Part#20400
- Lift Cover, Part#27364
- Pressure Booster System, Part#27028
- Cylinder Top Collar, Part#27315
- Flip-Up Footrest, Part#13900
- SL300 Valve Handle with Knob, Part#202090-00
- SL300 Valve Linkage Rod, Part#208048-00
- Gallatin Seat Replacement (Older Model) Part#44389
- Donut Shim Kit, Part#209225-00
- 2 1/4" Acme Bolt, Part#200135-00
- 4" Acme Bolt, Part#26235
| Name | Download |
|---|---|
| Spectrum Standard Warranty | Download |
| REVIT - R - LIFT - GALLATIN WP400 - 27336 0-6 LB (.rfa) | Download |
| REVIT - R - LIFT - GALLATIN WP400 - 27336 6-12 LB (.rfa) | Download |
| REVIT - R - LIFT - GALLATIN WP400 - 27336 0-6 SB (.rfa) | Download |
| REVIT - R - LIFT - GALLATIN WP400 - 27336 6-12 SB (.rfa) | Download |
| SPEC - R - LIFT - GALLATIN WP400 - 20-30 sb - 27336 (.dwg) | Download |
| SPEC - R - LIFT - GALLATIN WP400 - 20-30 sb - 27336-1 (.pdf) | Download |
| SPEC - LIFT - GALLATIN WP400 - 6-12 IN - 1830397 (.pdf) | Download |
| SPEC - LIFT - GALLATIN WP400 - 0-6 IN - 1830396 (.dwg) | Download |
| SPEC - LIFT - GALLATIN WP400 - 0-6 IN - 1830396 (.pdf) | Download |
| SPEC - LIFT - GALLATIN WP400 - 6-12 IN - 1830397 (.dwg) | Download |
If you don’t find the support you’re looking for here, visit our support page or contact our support team for a specific request.
